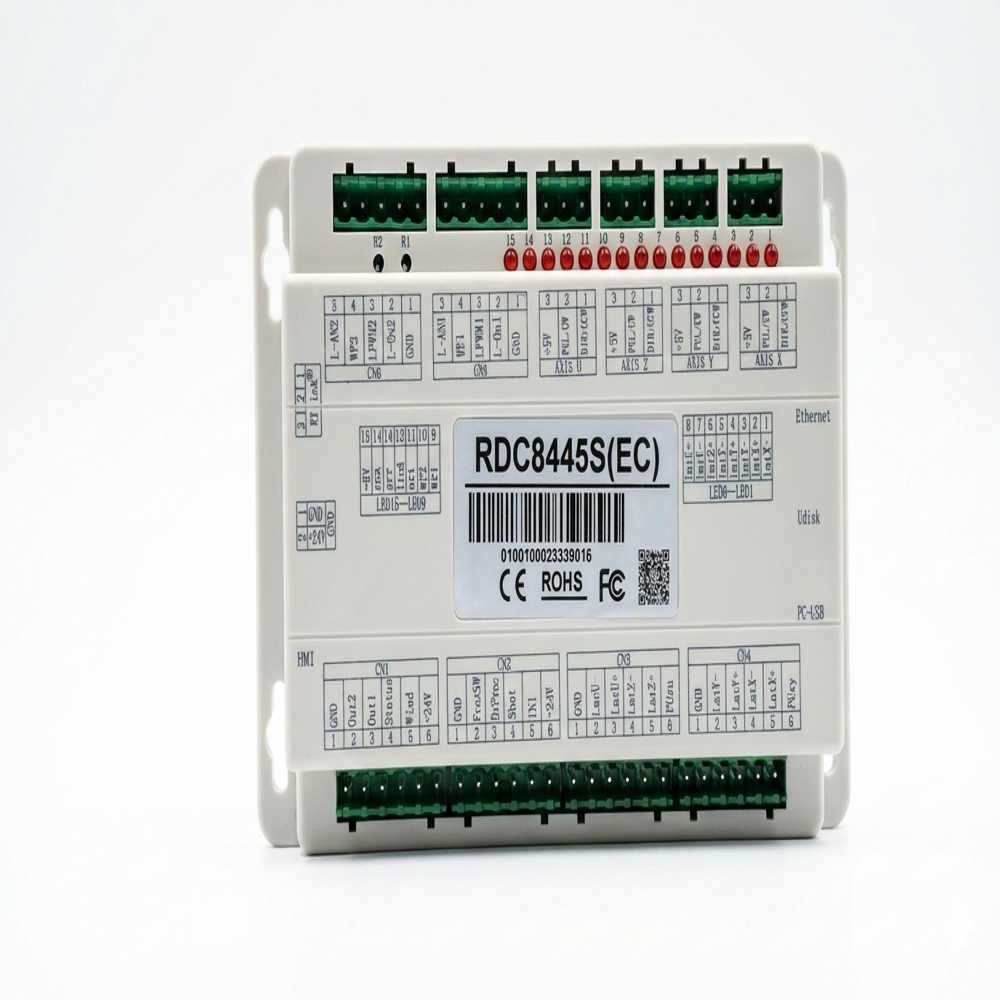

WHITE MACHINE CONTROL CARD

About WHITE MACHINE CONTROL CARD

Description for Control Card in CO2 Laser Machine:

A control card in a CO2 laser cutting machine serves as the brain of the system, managing and regulating the machine's operations. It converts user inputs (from the computer or manual interface) into precise electrical signals that control the movement of the laser head, the laser power, and other components such as the cooling system, exhaust, and motors. The control card ensures accurate positioning, timing, and power adjustments, ensuring that the cutting or engraving process is precise and efficient. It communicates with the laser tube to modulate the intensity of the laser beam and with the stepper motors to move the laser head across the material.

The control card typically features:

• Digital Inputs/Outputs: To interface with external components such as limit switches, sensors, and actuators.

• Signal Processing: To convert digital data into analog signals to control the laser power and motion.

• Communication Ports: To connect with computers or controllers (via USB, Ethernet, etc.) for machine setup and operation.

• Safety Protocols: Ensures safe operation, preventing overheating or malfunction.

In summary, the control card is essential for the smooth, efficient, and safe operation of the CO2 laser machine, making it possible to cut, engrave, and mark with precision.

Common Questions and Answers for Control Cards in CO2 Laser Machines:

Q1: What is the main function of a control card in a CO2 laser machine?

• A1: The primary function of the control card is to manage the machines operation by interpreting input commands and controlling various functions, including laser power, head movement, speed, and other machine parameters.

Q2: Can I use any control card with my CO2 laser machine?

• A2: No, control cards are usually model-specific and designed to work with certain types of laser systems. Its important to select a compatible control card that matches the specific model and features of your laser machine.

Q3: How does the control card affect cutting quality?

• A3: The control card plays a crucial role in regulating the power and movement of the laser. Accurate signal processing and timing result in smoother, more precise cuts. Any issues with the control card can lead to poor cutting performance, such as inconsistent cutting depths or uneven engraving.

Q4: What should I do if the control card malfunctions?

• A4: If the control card malfunctions, check for common issues like wiring problems, loose connections, or software errors. If the issue persists, you may need to replace the card or seek technical support from the manufacturer.

Q5: Can I upgrade my control card for better performance?

• A5: In many cases, upgrading the control card can improve performance by enabling new features, enhancing speed and precision, or providing better communication with external devices. Ensure that the upgrade is compatible with your machine and software.

Q6: How does the control card interact with the laser tube?

• A6: The control card regulates the laser tube's power by sending signals that control the intensity of the laser. This allows for variable cutting speeds, engraving precision, and different material treatments.

Q7: Is there a risk of damaging the machine if the control card fails?

• A7: While a control card failure usually affects the operation of the machine (like stopping the cut or causing erratic movements), it typically doesn't cause direct damage to the machine. However, its essential to replace or repair the faulty card promptly to avoid issues with other components.

Q8: How can I troubleshoot the control card?

• A8: Troubleshooting might involve checking the power supply, ensuring proper connections, updating or reinstalling the software, and verifying the settings. If the problem persists, consulting the manual or contacting technical support may be necessary.
