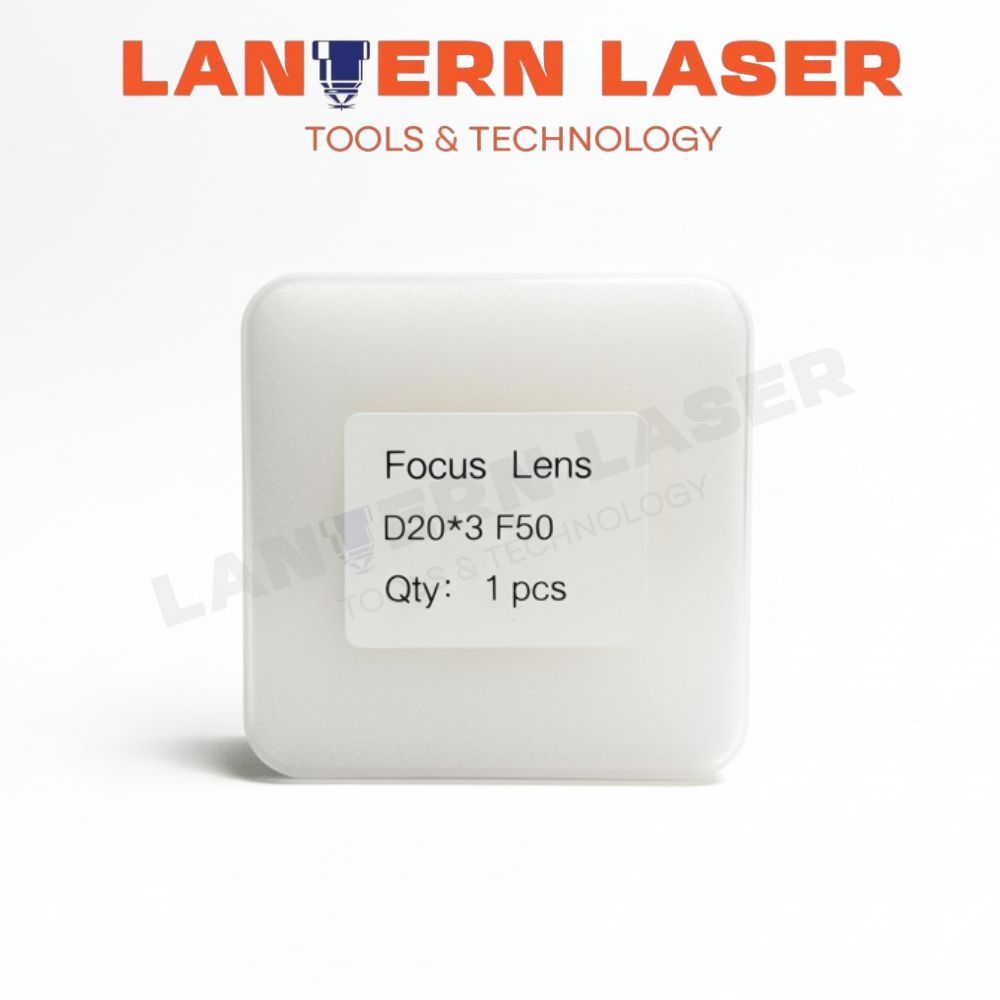

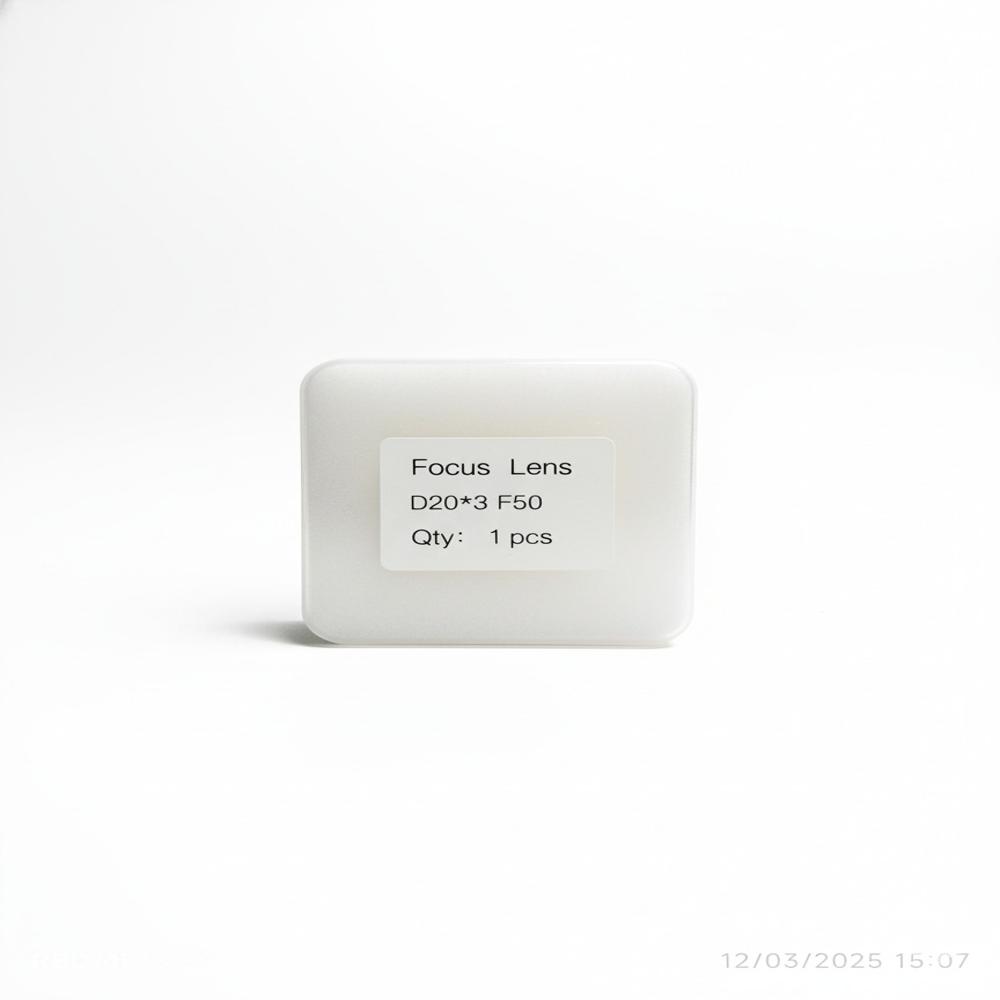

WELDING LENS D20*3 F50

About WELDING LENS D20*3 F50

Welding Focus Lens - Description

AWelding Focus Lensis an essential optical component used in various welding processes, particularly inlaser weldingorfocused beam applications. These lenses are designed to focus the laser beam or welding light to a precise point, enhancing the efficiency, accuracy, and quality of the weld. Welding focus lenses are typically used infiber lasers,CO2 lasers, andother focused beam welding systemsto direct energy precisely where it is needed.

: What is the primary function of a welding focus lens?

A:The primary function of a welding focus lens is to focus the laser or welding beam to a small, precise spot on the workpiece. This focused beam allows for more accurate welding, improved energy transfer, and reduced heat-affected zones. It is essential for creating clean, high-quality welds in materials like metal, plastic, or other substrates.

Q: What are the key specifications to look for in a welding focus lens?

A:Key specifications to consider for a welding focus lens include:

• Diameter:The size of the lens, often measured in millimeters (e.g., 20mm, 25mm).

• Focal Length:Determines the distance at which the lens focuses the welding beam. Shorter focal lengths provide a more concentrated focus, while longer focal lengths offer a wider focus.

• Material:Typically made from optical-grade materials like quartz or specialized glass that can withstand high temperatures and laser exposure.

• Coating:Some lenses have anti-reflective coatings to minimize energy loss and improve beam transmission.

• Working Distance:The optimal distance between the lens and the surface being welded for the best focus.

Q: How does the focal length affect welding performance?

A:The focal length of a welding focus lens is critical in determining how tightly or widely the beam is focused. Ashort focal lengthresults in a smaller, more concentrated beam, which is ideal for precision welding, especially for thin materials or intricate welds. Alonger focal lengthprovides a broader focus, which is useful for welding thicker materials or for tasks requiring a larger heat-affected zone.

Q: Can welding focus lenses be used with all types of welding systems?

A:Welding focus lenses are primarily used withlaser welding systems(fiber lasers, CO2 lasers, etc.). They are designed to focus the laser beam effectively. For other types of welding, such asMIGorTIG, lenses are not typically used in the same way, as these processes use different methods of focusing the arc. Therefore, its important to choose the right type of optical component depending on the welding system in use.

Q: How do you choose the right welding focus lens for your application?

A:Choosing the right welding focus lens depends on several factors:

• Welding Material:Consider the thickness, type, and properties of the material being welded.

• Beam Type:Different welding lasers or beam sources may require lenses with specific coatings or material properties.

• Spot Size and Focus Requirements:The focal length determines the spot size and depth of focus, so choose based on the precision needed for your welds.

• Lens Durability:Ensure the lens material can withstand the heat generated by the welding process. Quartz lenses are often preferred for their high heat resistance.
