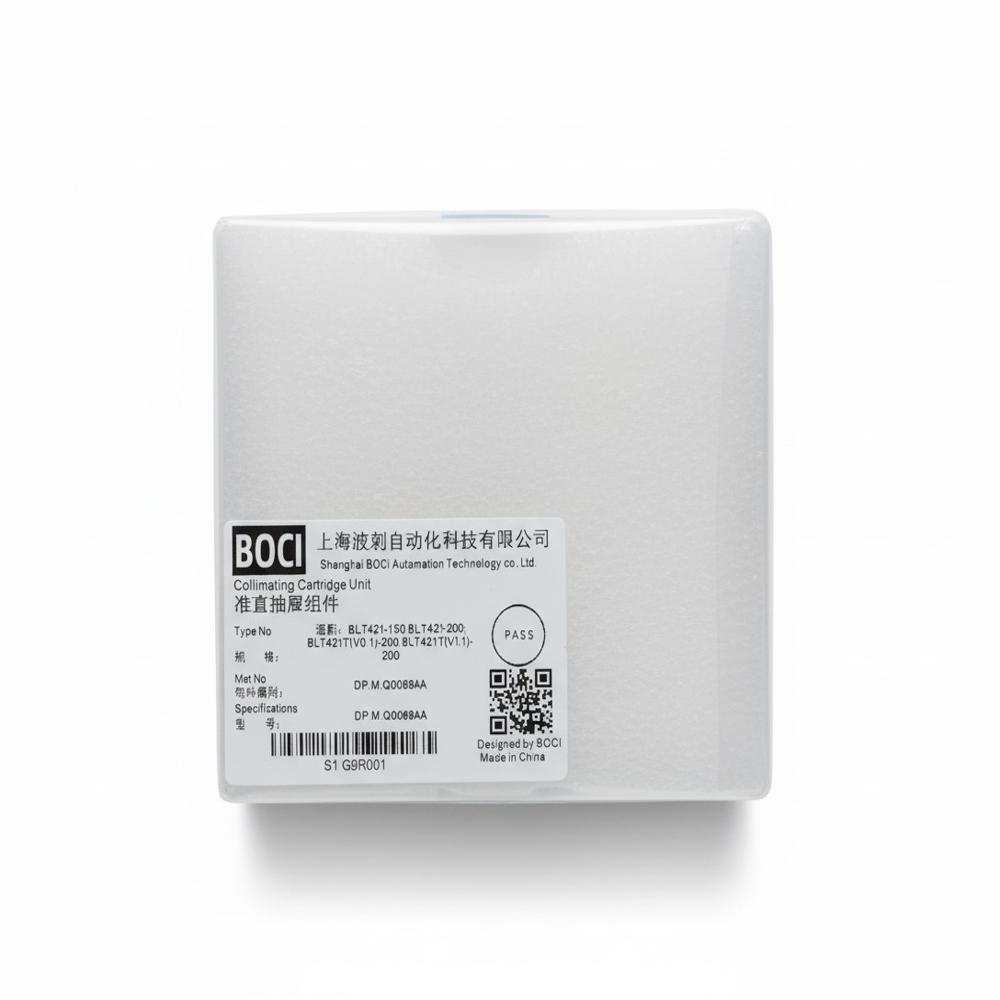

The collimation lens in the BLT421 cutting head aligns and straightens the laser beam emitted from the optical fiber. Fiber lasers naturally produce a slightly diverging beam, and the collimation lens converts this beam into parallel rays so the focusing lens can concentrate the energy accurately onto the cutting point.

Typical Specifications

• Lens type: Collimating lens

• Diameter: 32 mm

• Focal length: F100 mm

• Material: Optical fused silica (or similar high-grade optical glass)

• Coating: Anti-reflective coating for 10301090 nm fiber laser wavelength

• Compatibility: Designed for BLT421 / BLT421S cutting heads.

Function in the Optical System

In a fiber laser cutting head, the optical path usually works like this:

1. Fiber output laser beam exits the fiber and starts diverging.

2. Collimation lens converts the diverging beam into a parallel beam.

3. Focusing lens concentrates the parallel beam into a small high-energy spot on the material.

4. Protective lens protects internal optics from dust, smoke, and metal spatter.
