DNE INSULATING RING

Name: DNE INSULATING RING
Brand: LANTERN LASER TOOLS & TECHNOLOGY
Price: 1500.0 INR
Availability: InStock

Price 1500.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

DNE INSULATING RING Specification

Diameter
50 mm to 400 mm, as per specification

Phase
Suitable for Single and Three Phase systems

Shape
Round/Flat

Product Type
Insulating Ring

General Use
Electrical insulation in transformer and motor assemblies

Material
Epoxy resin composite or fiber-reinforced plastic

Type
Insulating ring (round/flat profile)

Capacity
High dielectric strength, suitable for medium to high voltage applications

Weight (kg)
Varies as per size, typically 0.05 - 0.5 kg

Computerized
No

Automatic
No

Touch Screen
No

Control System
Manual fitment

Surface Treatment
Smooth finish, anti-corrosive

QC System
100% Visual and electrical inspection

Tolerance
0.1 mm

Drawing
Available upon request

Voltage
Upto 36 kV

Dimension (L*W*H)
Custom as per order, generally diameter based

Feature
High insulation resistance, non-conductive, temperature resistant, robust mechanical properties

Color
Red, Brown, or as specified

Thermal Resistance
Up to 155C continuous operating temperature

Packaging
Corrugated boxes or as per customer requirement

Chemical Resistance
High resistance to oils and most chemicals

Installation
Press-fit or adhesive compatible

Water Absorption
<0.2% by weight

Flame Retardancy
V-0 grade as per UL94

MOQ
10 pieces

Lead Time
2-4 weeks after order confirmation

About DNE INSULATING RING

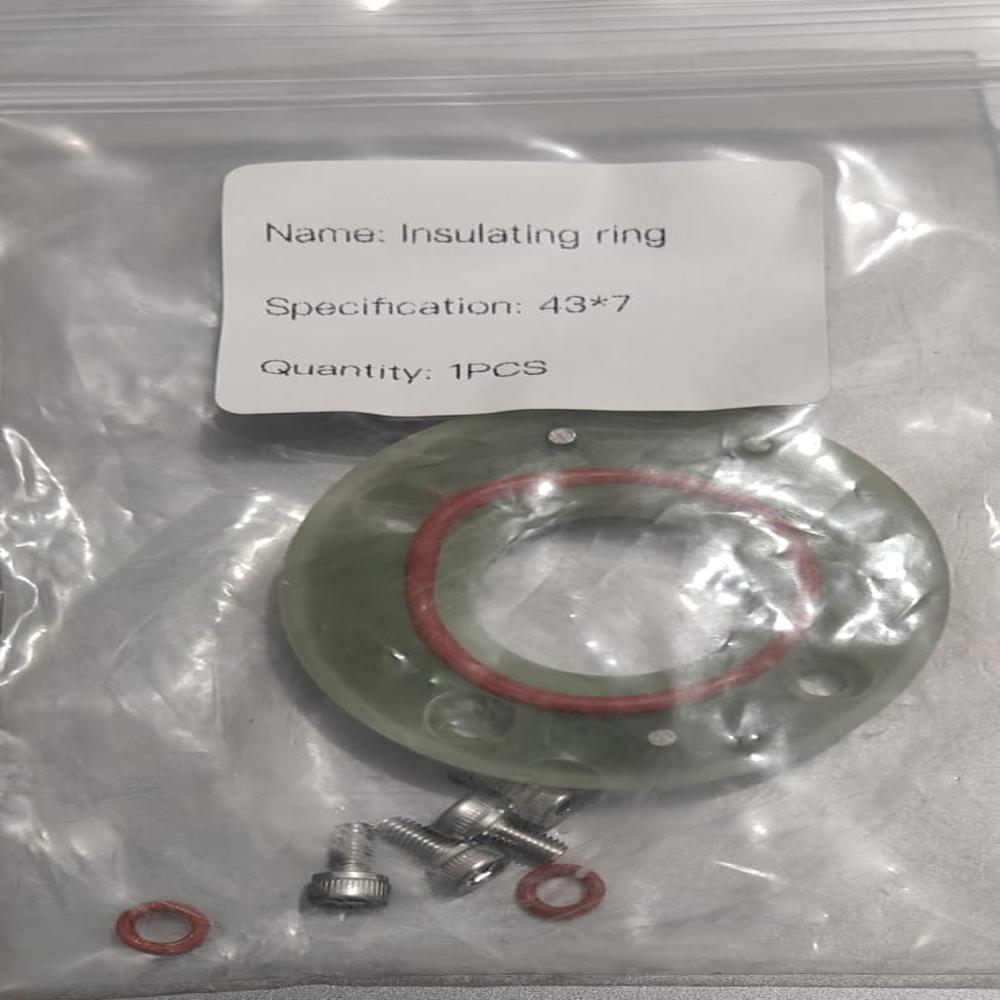

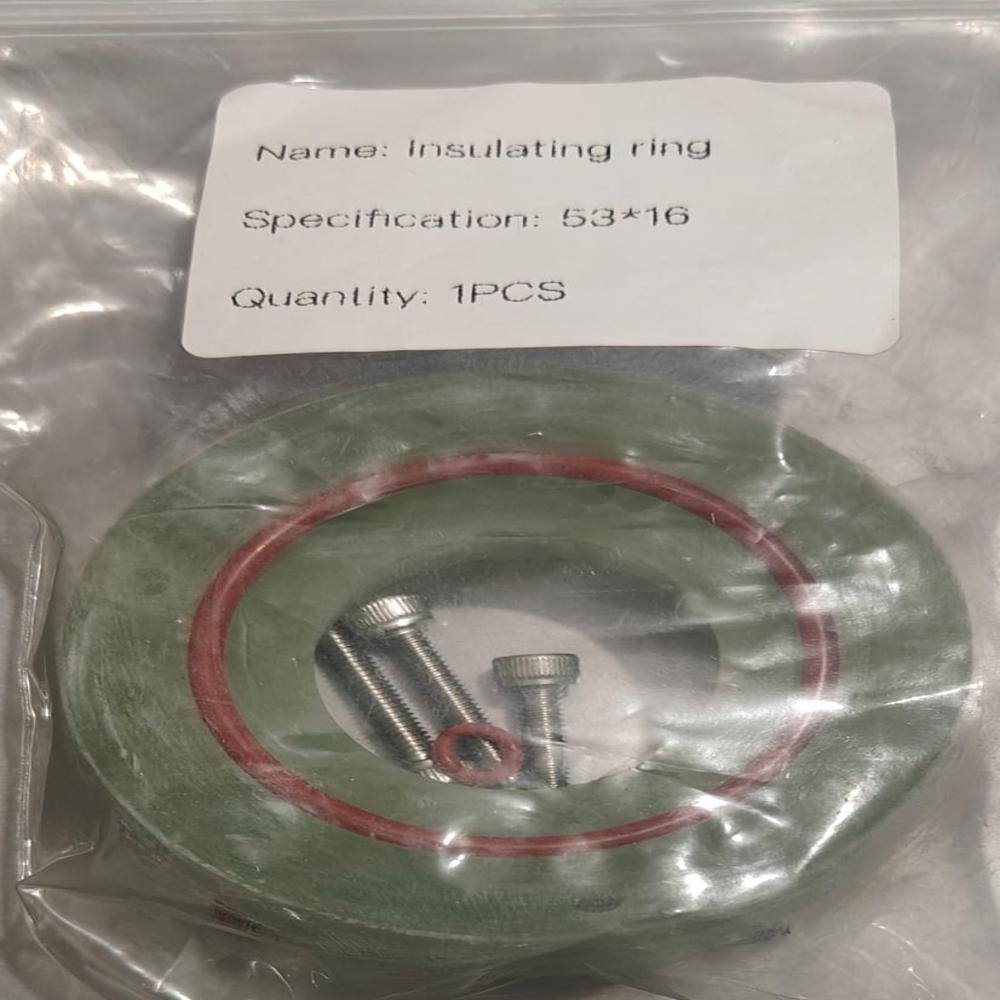

A DNE insulating ring is a circular insulating component (usually ceramic or fiberglass-type material) used in laser cutting machines and electrical assemblies to provide electrical isolation between conductive parts and to maintain proper alignment and safety during operation.

Insulating rings generally act as a non-conductive barrier that prevents electrical leakage, short circuits, and unwanted current flow between metal components. They also help provide mechanical support and stability in industrial equipment.

Q1. What is a DNE insulating ring?

Answer:
A DNE insulating ring is a non-conductive circular component used mainly in laser machines and electrical assemblies to isolate conductive parts and prevent current leakage.

Q2. What is the main purpose of an insulating ring?

Answer:
The main purpose is to provide electrical insulation, prevent short circuits, stop arcing, and maintain safe current flow in equipment.

Q3. Which materials are used to make DNE insulating rings?

Answer:
They are usually made from ceramic, fiberglass, or composite insulation materials that provide high dielectric strength and heat resistance.

Q4. Where are DNE insulating rings used?

Answer:
They are mainly used in laser cutting machines, electrical systems, motors, and industrial machinery requiring electrical isolation.

Q5. Why is insulation important in electrical machines?

Answer:
Insulation prevents electric shock, equipment damage, fire hazards, and improves reliability and safety of machines.

Q6. What happens if an insulating ring fails?

Answer:

It may cause current leakage, short circuit, machine damage, or safety risk to operators.

High-Performance Insulation for Demanding Applications

Designed specifically for transformer and motor assemblies, the DNE Insulating Ring delivers exceptional electrical insulation and thermal endurance. Its ability to handle up to 36 kV, withstand prolonged exposure to high temperatures, and resist water and chemicals makes it highly reliable. Flexible installation options and tailored sizing ensure seamless integration into various electrical systems, whether single or three phase. Depend on its robust construction to enhance safety and operational efficiency.

Customizable Solutions with Rigorous Quality Control

Each insulating ring is manufactured to precise customer requirements, with diameters ranging from 50 mm to 400 mm and a choice of round or flat profiles. Our product undergoes 100% visual and electrical inspection, guaranteeing consistent quality and performance. Packaging can be customized for safe delivery and ease of handling, ensuring the rings arrive intact and ready for installation.

FAQ's of DNE INSULATING RING:

Q: How do I install the DNE Insulating Ring in transformer or motor assemblies?

A: The DNE Insulating Ring can be installed either by press-fit or using a compatible adhesive, depending on your assembly's requirements. Both installation methods ensure a secure fit that maintains the ring's insulating properties in electrical environments.

Q: What makes the DNE Insulating Ring highly resistant to chemicals and moisture?

A: Manufactured from advanced epoxy resin composites or fiber-reinforced plastics, the DNE Insulating Ring offers high resistance to oils, most industrial chemicals, and minimal water absorption (less than 0.2% by weight). This ensures long-term performance, even in harsh operational environments.

Q: When will my order for DNE Insulating Rings be ready for shipment?

A: After you confirm your order, the lead time for DNE Insulating Rings is typically between 2 to 4 weeks, depending on the order volume and any customizations. Each order is thoroughly inspected before dispatch.

Q: Where are DNE Insulating Rings typically used?

A: These insulating rings are commonly used in transformer and motor assemblies for electrical insulation. Their high dielectric strength allows them to function effectively in medium to high voltage applications, suitable for both single and three-phase systems.

Q: What is the benefit of choosing a V-0 grade, high thermal resistance insulating ring?

A: Opting for a V-0 grade, thermally resistant insulating ring ensures maximum safety against electrical fires and reliable performance at continuous temperatures up to 155C. This translates to increased durability and efficient operation under demanding electrical loads.

Q: How is the quality of each DNE Insulating Ring assured?

A: Every insulating ring undergoes a comprehensive quality process, including 100% visual and electrical inspection. This ensures each piece meets high safety and performance standards before reaching the customer.

Q: What information is required to place an order for custom DNE Insulating Rings?

A: To customize your rings, you typically need to provide specifications such as diameter, desired thickness, profile (round or flat), color, and any special packaging or surface finish requirements. Drawings can be supplied upon request to confirm design details.
