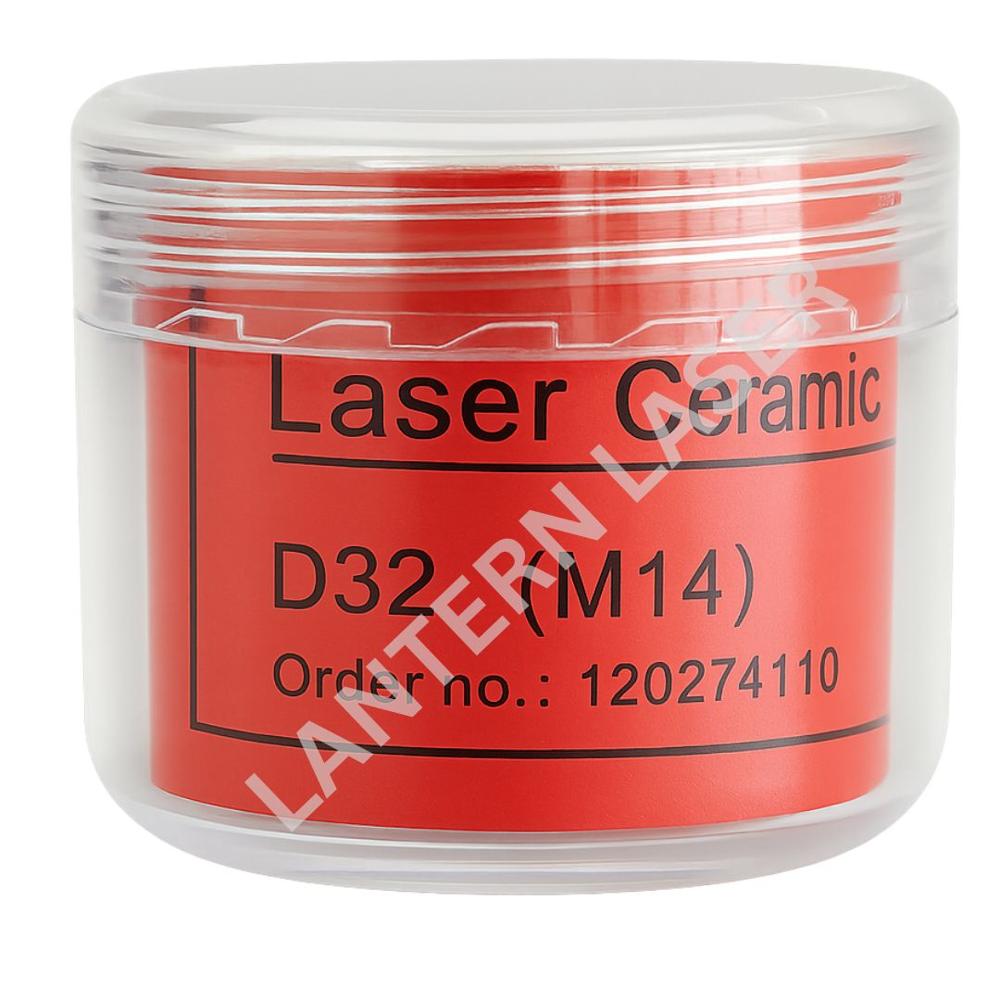

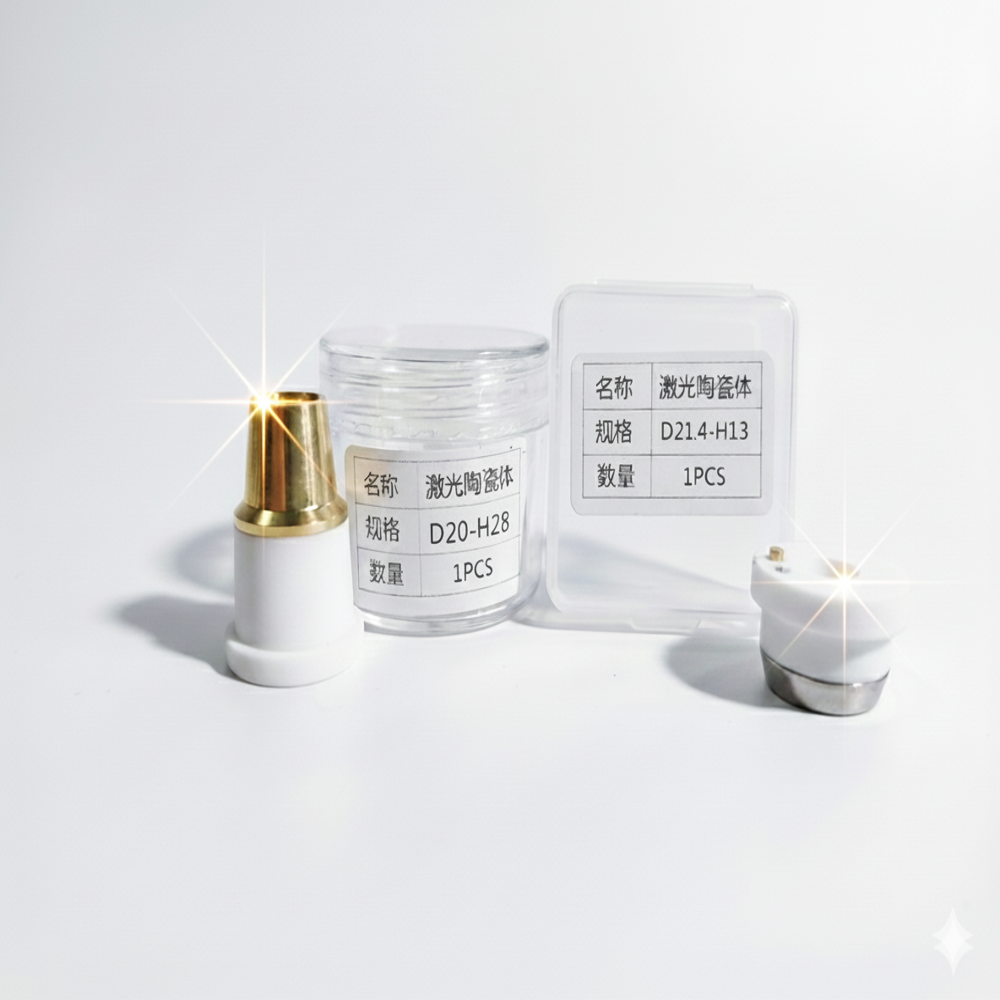

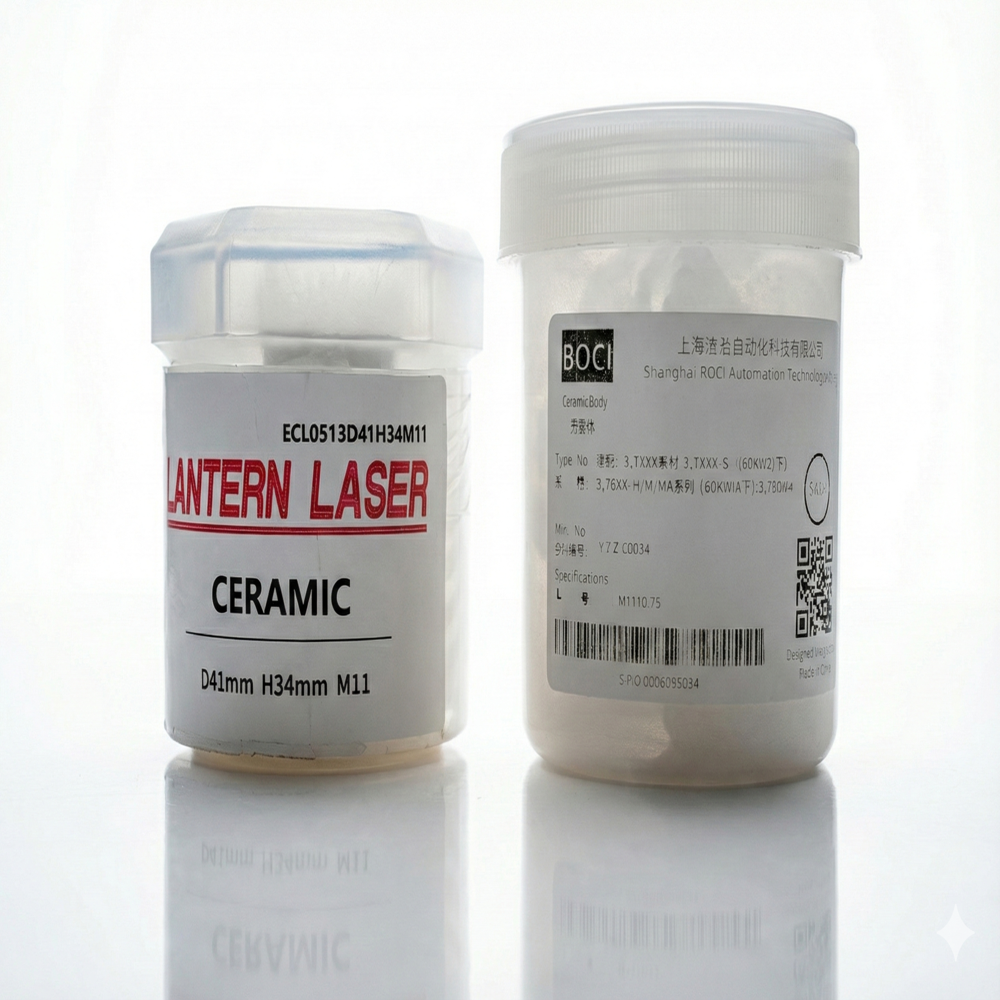

CERAMIC RING

The ceramic ring is an important consumable part installed between the nozzle and sensor in a laser cutting head. It provides electrical insulation, supports capacitive height sensing, and protects internal components from heat, spatter, and mechanical impact. Made from high-temperature ceramics like alumina or zirconia, it helps maintain stable nozzle alignment, accurate cutting distance, and consistent cutting quality.

Ceramic rings also help transmit signals from the nozzle to the control system, allowing the machine to maintain precise nozzle height and avoid collision with the workpiece.

Question & Answer (Ceramic Ring Laser Cutting Head)

Q1. What is the function of a ceramic ring in a laser cutting head?

Answer:
It provides electrical insulation, signal transmission for height sensing, thermal protection, and mechanical support for nozzle alignment, ensuring stable and accurate cutting performance.

Q2. Why is electrical insulation important in a ceramic ring?

Answer:
It isolates the nozzle from the cutting head body, allowing accurate capacitive sensing and preventing short circuits or signal disturbance.

Q3. How does a ceramic ring improve cutting quality?

Answer:
By maintaining correct nozzle alignment, stable height sensing, and protecting against heat and debris, it ensures clean, accurate, and consistent cuts.

Q4. What materials are used to make laser ceramic rings?

Answer:
Most are made from high-performance ceramics like Alumina (AlO) or Zirconia (ZrO) because of high heat resistance, durability, and electrical insulation properties.

Q5. What happens if the ceramic ring is damaged?

Answer:
It can cause unstable height sensing, poor cutting quality, nozzle collision risk, and possible damage to the laser head or optics.

Q6. Is ceramic ring a consumable part?

Answer:
Yes, it is designed to absorb impact and wear, helping protect expensive parts like sensors, lenses, and cutting head housing.
