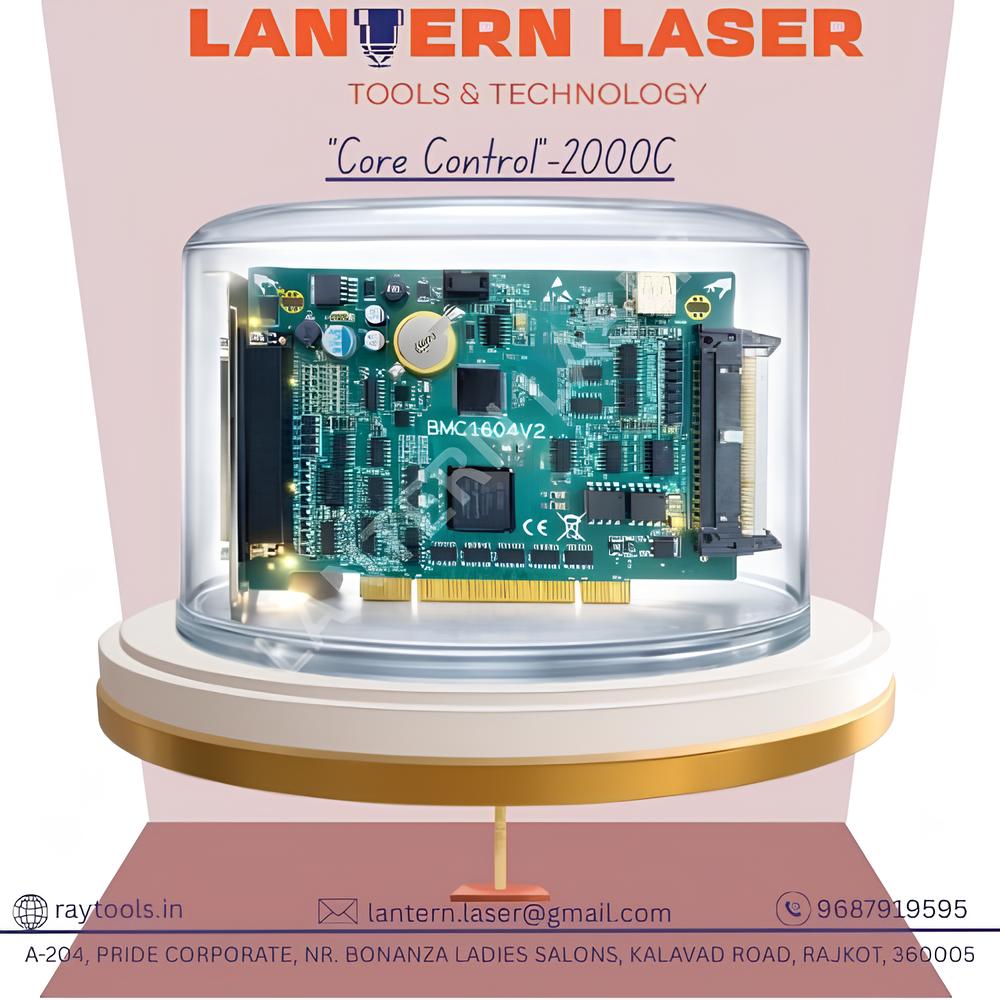

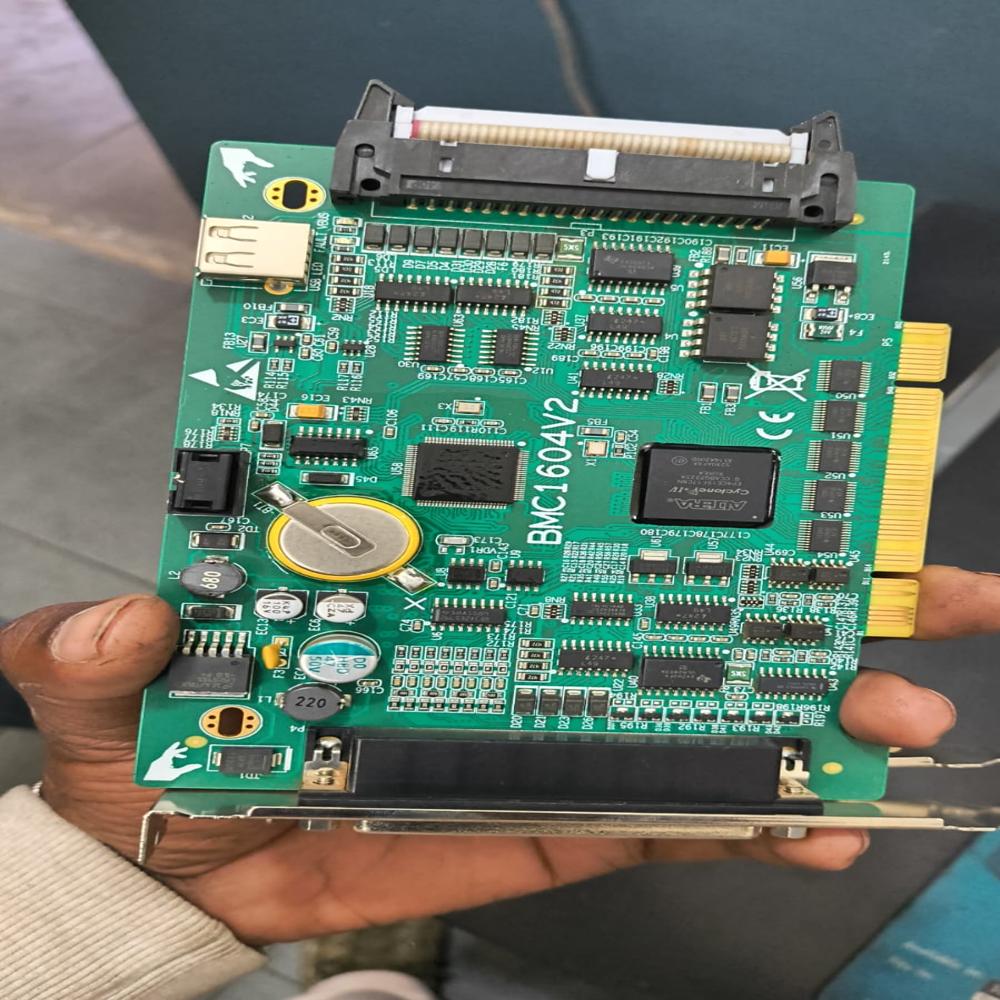

2000C CONTROLLER CARD

About 2000C CONTROLLER CARD

The 2000C Controller Card is an electronic control board used in industrial automation systems, power control panels, and elevator or motor control systems (application may vary by manufacturer). It acts as the main processing unit of the system, managing inputs, outputs, and overall operational logic.

The card is typically built with a microcontroller or microprocessor, input/output interface circuits, communication ports, protection components, and power regulation circuits.

Q1: What is the main function of the 2000C Controller Card?

Answer:
The main function of the 2000C Controller Card is to control and manage system operations by processing inputs and generating appropriate outputs based on programmed logic.

Q2: What type of processor is used in the 2000C controller card?

Answer:
It uses a microcontroller or microprocessor to execute control logic and manage system functions.

Q3: What are the main sections of the 2000C Controller Card?

Answer:

• Power supply section

• Input section

• Output section

• Control/processing section

• Communication section

Q4: What is the purpose of LED indicators on the controller card?

Answer:
LED indicators show power status, communication status, fault conditions, and input/output activity.

Q5: What happens if the controller card fails?

Answer:
If the controller card fails, the system may stop functioning, show fault codes, or operate abnormally.

Q6: How can you troubleshoot a 2000C Controller Card?

Answer:

• Check power supply voltage

• Inspect fuse and protection circuits

• Observe LED indicators

• Check input/output signals

• Verify communication signals

Q7: What safety features are included in the 2000C Controller Card?

Answer:
It includes overload protection, short-circuit protection, and fault monitoring systems.
