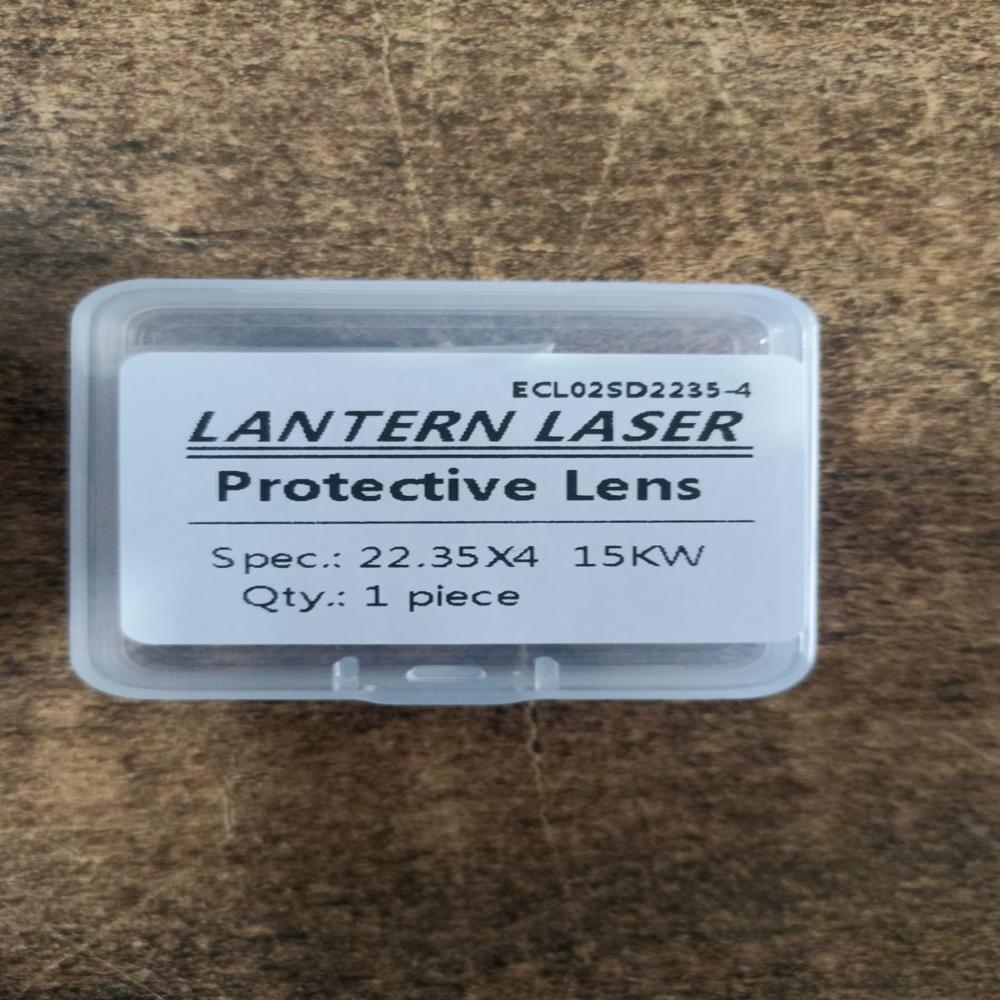

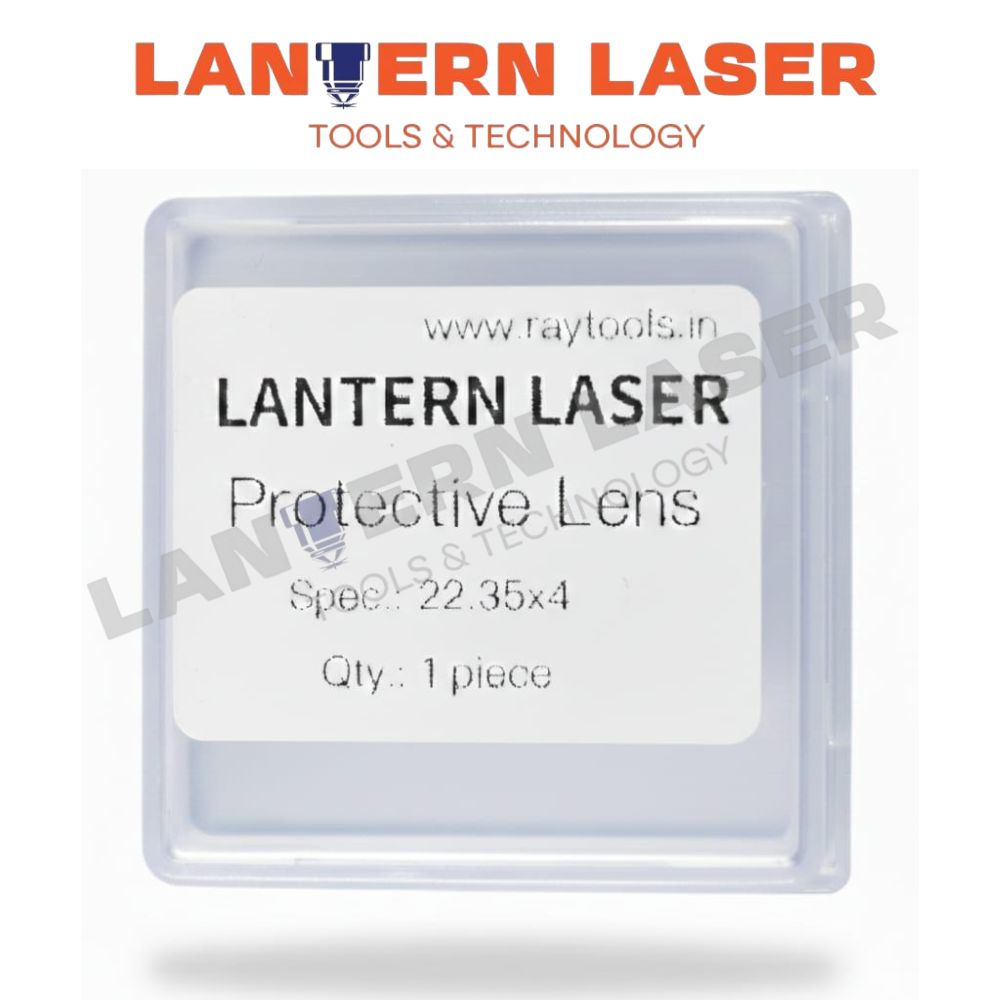

PROTECTIVE LENS 22.35

A protective lens (also called protective window / cover glass) is an important optical consumable used inside the laser cutting head. It is installed in front of the focusing lens to protect it from dust, metal particles, smoke, and back-spatter generated during cutting.

The protective lens acts as a barrier between the working area and the main optical system. By protecting the expensive focusing lens from contamination or damage, it helps maintain cutting quality and reduces machine downtime.

Most fiber laser cutting heads are designed with easily replaceable protective lens cartridges or drawer systems for fast maintenance and safe operation.

Because cutting produces particles and fumes, the protective lens is one of the most frequently replaced optical components in fiber laser machines.

Question & Answer (Protective Lens Laser Cutting Machine)

Q1. What is a protective lens in a laser cutting machine?

Answer:
It is a transparent optical glass placed inside the laser cutting head to protect the focusing lens from dust, sparks, and metal particles during cutting.

Q2. Why is a protective lens important?

Answer:
It protects the main optical lens from contamination and damage, helping maintain cutting quality and extending the life of expensive optical components.

Q3. Where is the protective lens located?

Answer:
It is usually installed below or in front of the focusing lens inside the cutting head assembly.

Q4. Why is the protective lens replaced frequently?

Answer:
Because it directly faces cutting fumes, spatter, and dust, which can burn or contaminate the surface and affect laser beam quality.

Q5. What happens if the protective lens is damaged or dirty?

Answer:

• Poor cutting quality

• Power loss

• Irregular cutting edges

• Possible damage to focusing lens

Q6. Is protective lens a consumable part?

Answer:
Yes, it is considered a consumable optical part and must be checked and replaced regularly depending on usage and cutting conditions.

Q7. What materials are protective lenses usually made from?

Answer:
Typically high-quality optical glass such as fused silica or quartz with anti-reflection coating for high laser transmission.
