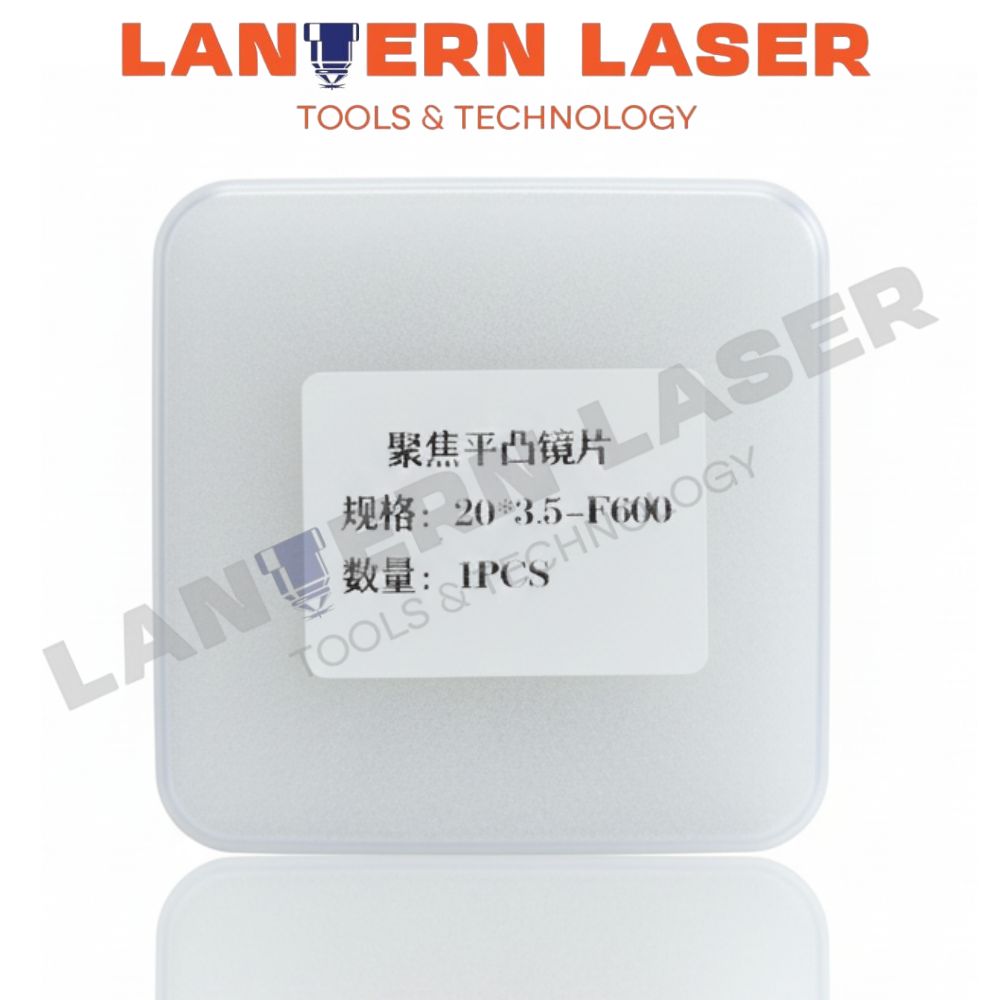

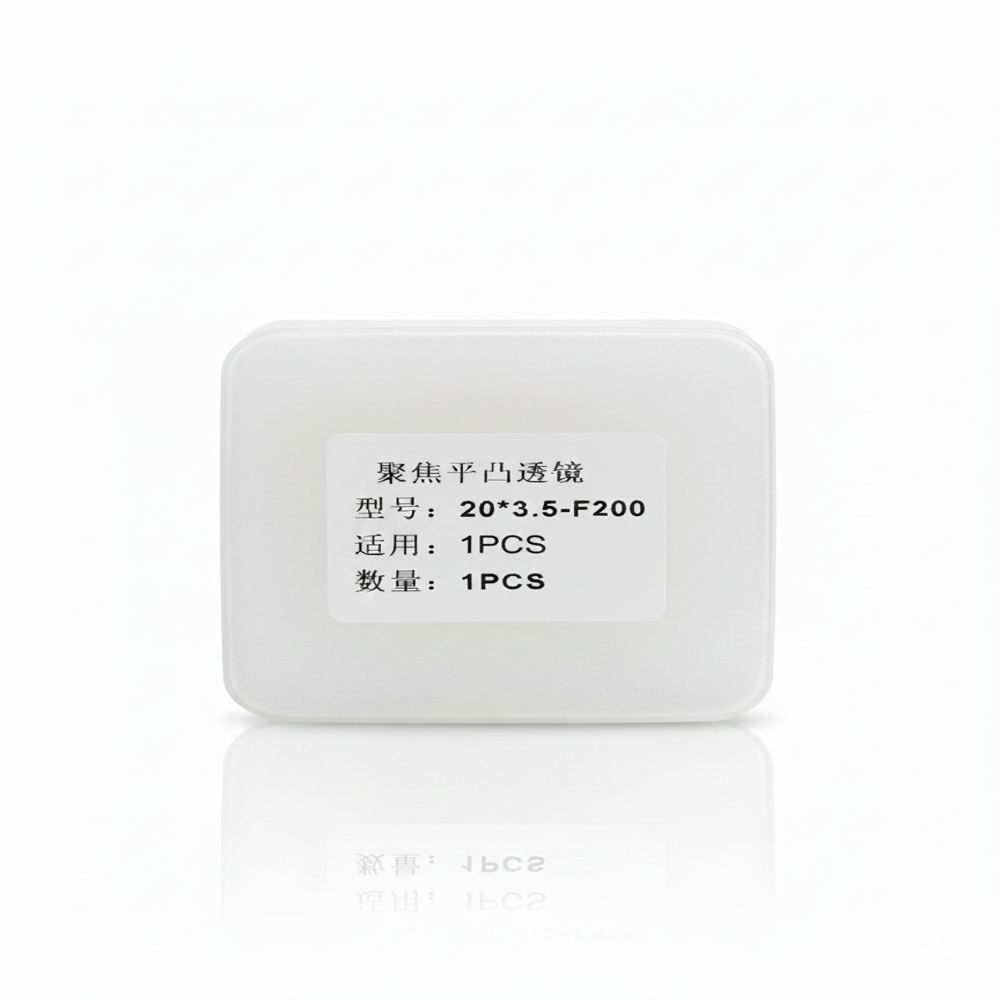

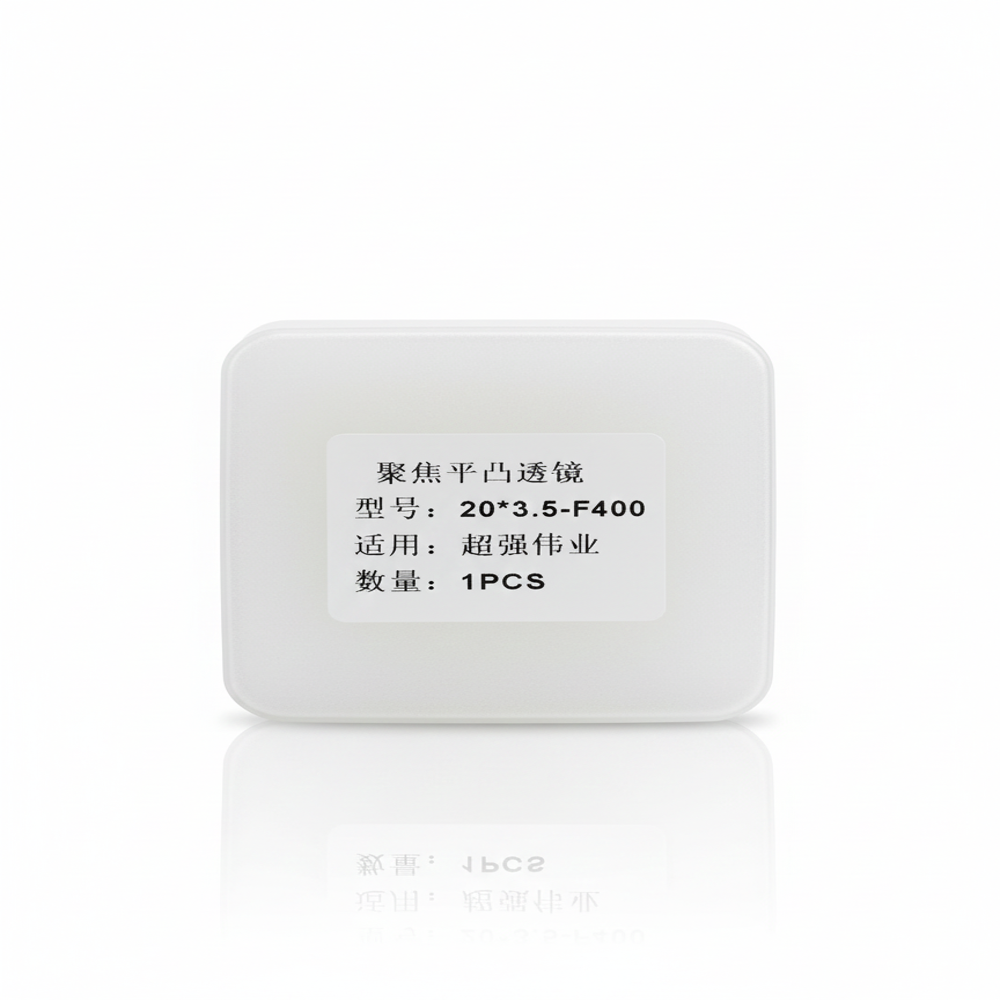

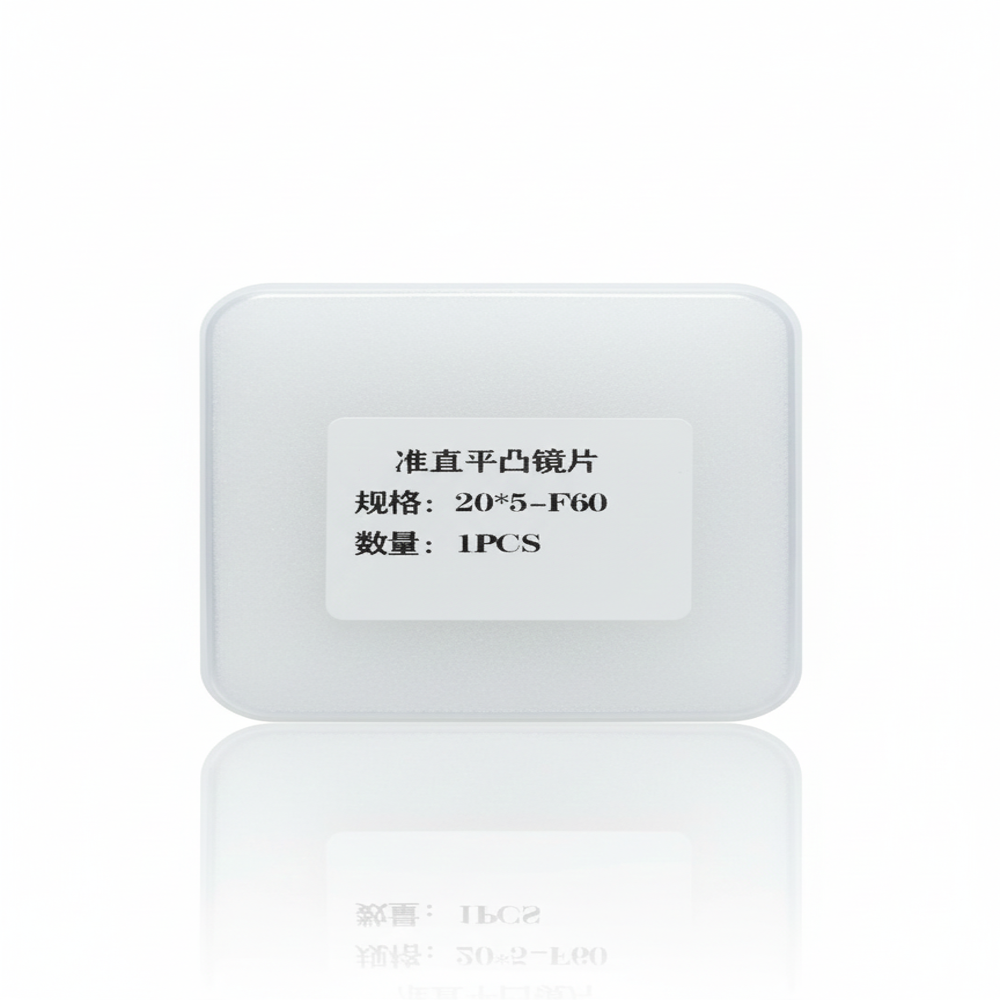

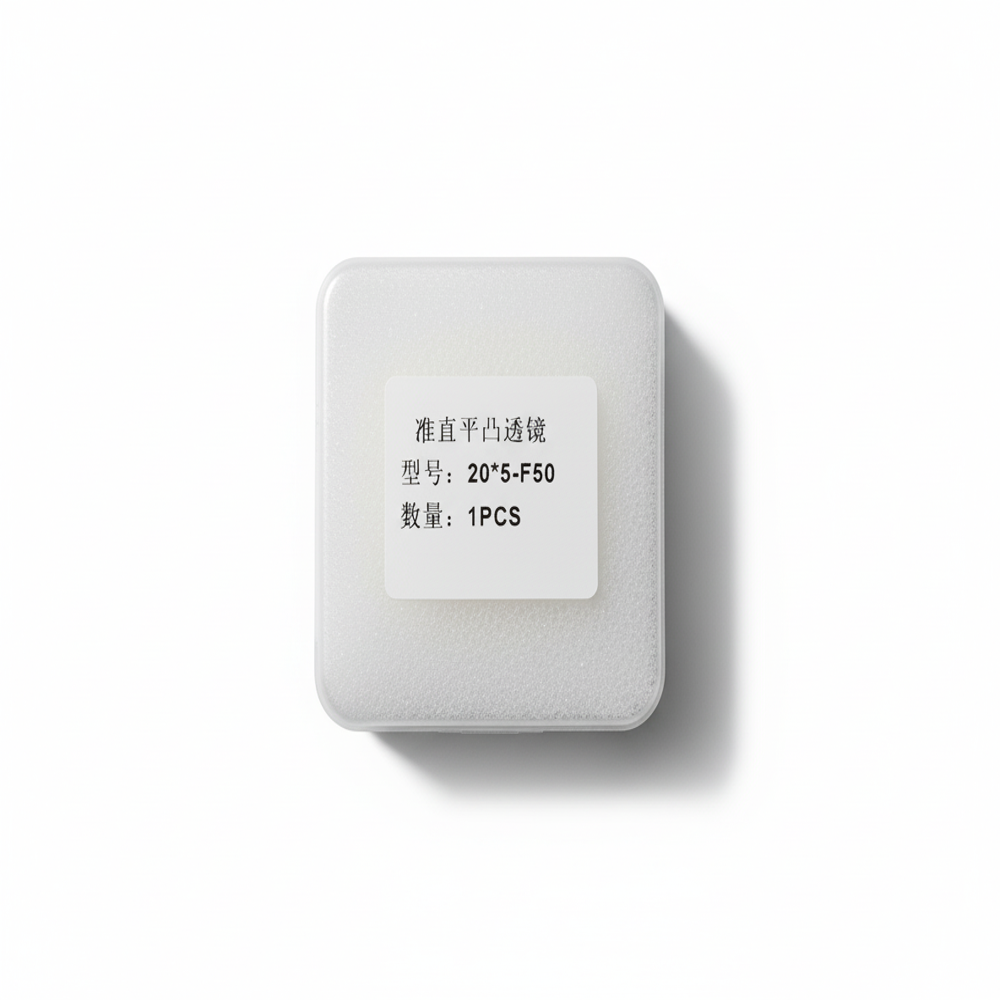

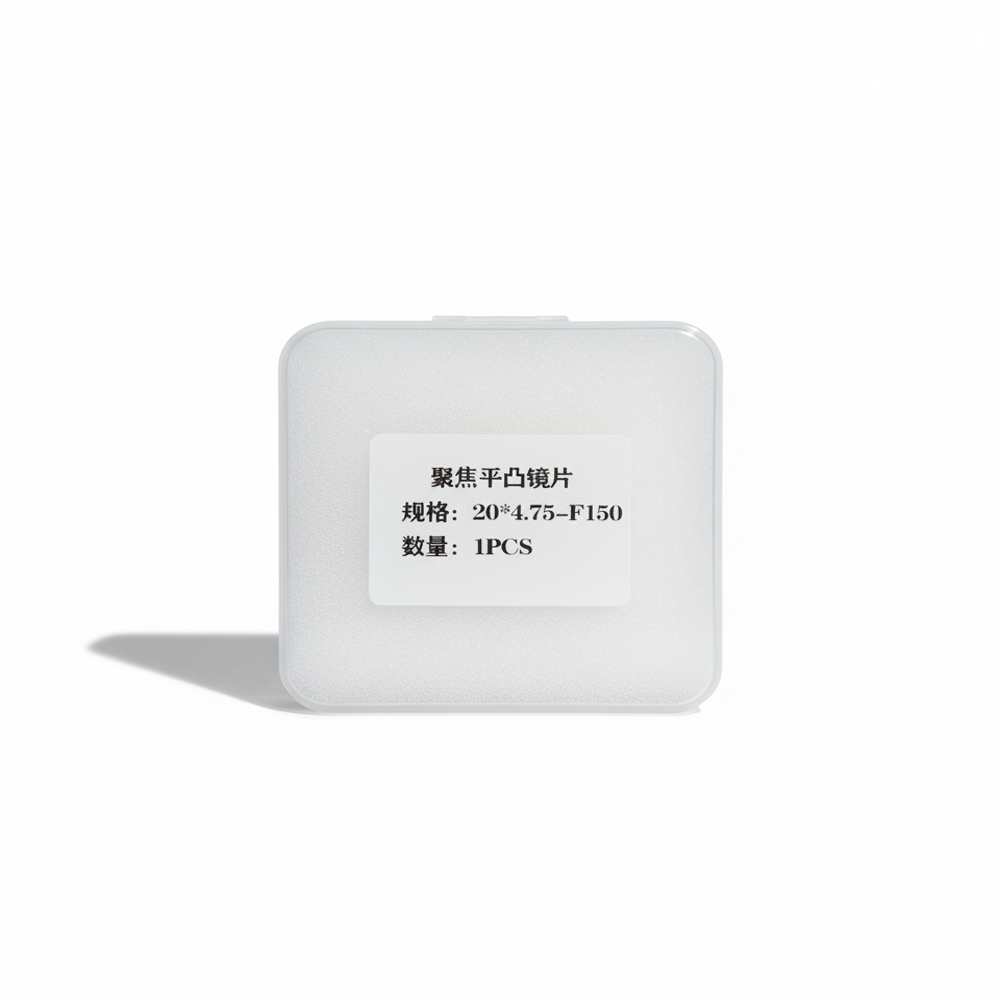

WELDING FOCUS LENS

About WELDING FOCUS LENS

A welding focus lens is a specialized lens used in welding processes, particularly in techniques like laser welding, to focus and direct the welding beam. The lens helps control the intensity and precision of the welding arc, ensuring that the welding heat is concentrated at the correct spot for optimal fusion of materials.

Description:

The welding focus lens is an essential component in laser welding, robotic welding, or other welding systems that use focused light or lasers. It serves to:

1. Concentrate the welding energy: The lens helps focus the light or laser energy to a fine point, increasing the heat concentration in the desired area for efficient material bonding.

2. Improve precision: By focusing the beam, it allows for more controlled, detailed, and accurate welds, particularly for smaller or more intricate joints.

3. Protect the welding machine and operator: In some cases, the lens also helps shield sensitive components from heat or contamination that could affect performance.

4. Material compatibility: Focus lenses are usually made from durable materials such as quartz or specialized glass to withstand high temperatures and the intensity of laser energy.

5. Different types: Welding lenses can come in various focal lengths, materials, and coatings depending on the specific type of welding (e.g., laser welding, TIG, MIG) and the required application.

Common Types of Welding Lenses:

1. Standard Focus Lens: Used in general welding for most tasks.

2. High-Durability Lens: Designed to withstand higher temperatures or harsh environments.

3. Specialized Lenses: Used for specific welding applications, such as precision work in electronics or small parts.

Sample Questions & Answers:

Q1: Why is it important to use the correct focus lens for welding?

A1: Using the correct focus lens is essential because it ensures that the welding energy is directed accurately to the joint area. This prevents issues like overheating, weak welds, or damage to the surrounding material. It also helps with achieving a clean and precise weld, especially in high-precision applications.

Q2: What happens if the focus lens is damaged during welding?

A2: If the focus lens is damaged, it can lead to poor beam alignment, causing inaccurate welding. The beam may become too diffused, leading to insufficient heat or incomplete fusion of the materials. In extreme cases, a damaged lens could also result in contamination or safety risks for the operator.

Q3: How can you maintain a welding focus lens?

A3: To maintain a welding focus lens, it should be regularly inspected for signs of damage, such as cracks, pitting, or discoloration. Clean it carefully to remove any debris or contaminants that may block the light or laser beam. Always use the correct tools and cleaning materials, as harsh chemicals or abrasives can damage the lens. If it becomes scratched or significantly worn, replacing it is important to ensure proper weld quality.
